Products

Oil-Injected AirCompressor Air Dryer / Air Filter

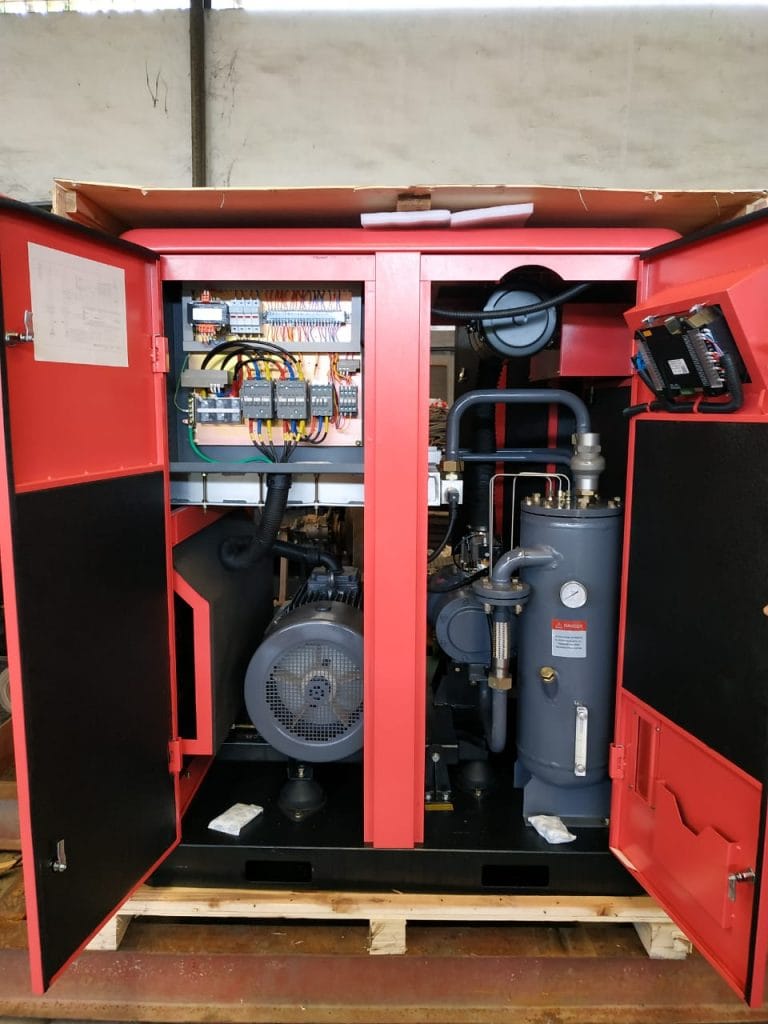

Components

Customised air filter with two-stage filtering system. Oil filters from MANN-FILTER to purify oil of dirt and solid particles.

HIGH QUALITY aluminium fins and copper coil materials with effective heat dissipation to ensure the perfect cooling efficiency.

HANBELL air-end with their own patented profile to enhance the volume efficiency and displacement, and reduce the vibration and noise.

OPTIMUM system design to reduce pressure drops and save energy. Acoustic enclosures reduce sound levels.

ABB electrical control system providing a reliable air compressor operation with proper labelled wiring.

Denmark DANFOSS pressure sensor and Italy ODE solenoid valve ensuring stable running operation of air compressors.

SKF bearings are selected for their robustness because of the enduring environment the air compressor motor is being operated in.

High efficiency ZODA motor with IP54 protection (against particles and fair amount of protection against water) and Class F insulation.

INOVANCE inverter is used with our variable frequency screw air compressors. Variable speed drive improves energy saving efficiency.

Specifications

Model	Air Delivery (m3/min)				Motor	Air Outlet	Weight	Dimensions
Model	7 bar	8 bar	10 bar	12.5 bar	kW	Air Outlet	Kg	(L x W x H) mm
Oil-Injected: Belt Driven Double Screw Air Compressor
B10A	1.1	1	0.85	0.7	7.5	3/4”	350	850x640x880
B15A	1.8	1.65	1.5	1.3	11	1”	450	1150x750x1180
B20A	2.4	2.2	2.1	1.8	15	1”	460	1150x750x1180
B25A	3.1	2.9	2.7	2.3	18.5	1”	620	1200x880x1450
B30[A/W]	3.8	3.6	3.2	2.5	22	1”	640	1200x880x1450
B40[A/W]	5.3	5	4.3	3.6	30	1 1/4”	900	1250x1000x1360
B50[A/W]	6.6	6.2	5.7	4.6	37	1 1/4”	1060	1350x1000x1640
B60[A/W]	8	7.7	6.9	6	45	1 1/2”	1150	1300x1000x1470
B75[A/W]	10.5	9.8	8.7	7.3	55	2”	1750	1950x1320x1570
B100[A/W]	13.6	13	11.3	10.1	75	2”	1840	1950x1320x1570
B120[A/W]	16.2	15.4	13.2	11.2	90	2”	2030	2100x1320x1700

Model	Air Delivery (m3/min)				Motor	Air Outlet	Weight	Dimensions
Model	7 bar	8 bar	10 bar	12.5 bar	kW	Air Outlet	Kg	(L x W x H) mm
Oil-Injected: Direct Driven Double Screw Air Compressor
D25[A/W]	3.1	2.9	2.7	2.3	18.5	1 1/4”	640	1380x850x1150
D30[A/W]	3.8	3.6	3.2	2.5	22	1 1/4”	640	1380x850x1150
D40[A/W]	5.3	5	4.3	3.6	30	1 1/4”	900	1450x900x1220
D50[A/W]	6.6	6.2	5.7	4.6	37	1 1/2”	1060	1595x1000x1365
D60[A/W]	8	7.7	6.9	6	45	1 1/2”	1150	1595x1000x1450
D75[A/W]	10.5	9.8	8.7	7.3	55	2”	1750	2100x1250x1700
D100[A/W]	13.6	13	11.3	10.1	75	2”	1840	2100x1250x1700
D120[A/W]	16.2	15.4	13.2	11.2	90	2”	2030	2100x1250x1700
D150[A/W]	20.8	19.5	16.5	13.7	110	DN65	2920	2545x1450x1900
D175[A/W]	24	23	20	15.5	132	DN65	3200	2545x1450x1900
D200[A/W]	27.8	26	23.5	19.5	160	DN65	3600	2790x1550x2000
D250[A/W]	32.5	31	26	21.6	185	DN80	3780	2790x1550x2000
D270[A/W]	34.5	33	28	23.5	200	DN80	4400	2850x1700x2000
D300[A/W]	38	36.5	32	27	220	DN100	4930	3150x2000x2120
D330[A/W]	43	40.5	36.5	32	250	DN100	5450	3150x2000x2120
D375[A/W]	51.5	50	45	37	280	DN125	6150	4000x2000x2100
D420[A/W]	56	55	49	41	315	DN125	7500	4600x2300x2400
D470[A/W]	64	62	54	46	355	DN150	8100	4600x2300x2400
D550[A/W]	73	70	61	52	400	DN150	8400	5000x2350x2400
D600[A/W]	81	79	70	59	450	DN150	9000	5500x2590x2800
D670[A/W]	89	87	77	67	500	DN200	9500	5500x2590x2800
D750[A/W]	102	98	87	77	560	DN200	10000	6500x2700x3000

ENERGY SAVINGS. Variable frequency can efficiently maintain steady discharge of pressure in widely varying loads, thereby reducing power cost.

REDUCING POWER SURGES from ‘soft starting’ motors, eliminating high inrush currents.

Delivering a more CONSTANT PRESSURE & FLOW RATE.

Model	Air Delivery (m3/min)				Motor	Air Outlet	Weight	Dimensions
Model	7 bar	8 bar	10 bar	12.5 bar	kW	Air Outlet	Kg	(L x W x H) mm
Oil-Injected: Direct Driven VSD Screw Air Compressor
D30[A/W]V	1.52 – 3.8	1.4 – 3.6	1.28 – 3.2	1.08 – 2.5	22	1 1/4”	665	1380x850x1150
D40[A/W]V	2.08 – 5.3	2.0 – 5.0	1.72 – 4.3	1.48 – 3.6	30	1 1/4”	925	1450x900x1220
D50[A/W]V	2.56 – 6.6	2.4 – 6.2	2.2 – 5.7	1.84 – 4.6	37	1 1/2”	1110	1595x1000x1365
D60[A/W]V	3.2 – 8.0	3.08 – 7.7	2.6 – 6.9	2.16 – 6.0	45	1 1/2”	1210	1595x1000x1450
D75[A/W]V	4.2 – 10.5	3.92 – 9.8	3.4 – 8.7	2.84 – 7.3	55	2”	1810	2100x1250x1700
D100[A/W]V	5.4 – 13.6	5.16 – 13.0	4.4 – 11.3	3.76 – 10.1	75	2”	1900	2100x1250x1700
D120[A/W]V	6.4 – 16.2	6.16 – 15.4	5.6 – 13.2	4.6 – 11.2	90	2”	2190	2100x1250x1700
D150[A/W]V	8.32 – 20.8	7.8 – 19.5	6.3 – 16.5	5.2 – 13.7	110	DN65	3030	2500x1550x1900
D175[A/W]V	9.6 – 24.0	9.2 – 23.0	7.4 – 20.0	5.8 – 15.5	132	DN65	3320	2545x1450x1900
D200[A/W]V	11.08 – 27.8	10.2 – 26.0	9.0 – 23.5	7.32 – 19.5	160	DN65	3720	2790x1550x2000
D250[A/W]V	13.0 – 32.5	12.4 – 31.0	9.8 – 26.0	8.0 – 21.6	185	DN80	3930	2790x1550x2000

Water-Injected

Model	Air Delivery (m3/min)				Motor	Air Outlet	Weight	Dimensions
Model	7 bar	8 bar	10 bar	12.5 bar	kW	Air Outlet	Kg	(L x W x H) mm
Water-Injected: Oil-Free Direct Driven VSD Air Compressor
W15AV	0.68 – 1.8	0.64 – 1.65	0.56 – 1.5	0.48 – 1.3	11	1″	540	1300x 800×1300
W20AV	0.96 – 2.4	0.88 – 2.2	0.84 – 2.1	0.68 – 1.8	15	1″	650	1620x1004x1410
W25AV	1.24 – 3.1	1.16 – 2.9	1.08 – 2.7	0.88 – 2.3	18.5	1″	840	1600x910x1350
W30AV	1.52 – 3.8	1.4 – 3.6	1.28 – 3.2	1.08 – 2.5	22	1 1/4″	870	1450x1000x1560
W40AV	2.08 – 5.3	2.0 – 5.0	1.72 – 4.3	1.48 – 3.6	30	1 1/4″	980	1950x1050x1432
W50AV	2.56 – 6.6	2.4 – 6.2	2.2 – 5.7	1.84 – 4.6	37	1 1/2″	1000	1700x1100x1630
W60AV	3.2 – 8.0	3.08 – 7.7	2.6 – 6.9	2.16 – 6.0	45	1 1/2″	1060	2150x1300x1590
W75WV	4.2 – 10.5	3.92 – 9.8	3.4 – 8.7	2.84 – 7.3	55	2″	1250	2200x1400x1540
W100WV	5.4 – 13.6	5.16 – 13.0	4.44 – 11.6	3.76 – 10.1	75	2″	1480	2400x1450x1740
W120WV	6.4 – 16.2	6.16 – 15.4	5.6 – 13.2	4.6 – 11.2	90	2″	2030	2550x1400x1605
W150WV	8.32 – 20.8	7.8 – 19.5	6.3 – 16.5	5.2 – 13.7	110	DN65	2450	2700x1550x1750
W175WV	9.6 – 24.0	9.2 – 23.0	7.4 – 20.0	5.8 – 15.5	132	DN65	2850	2600x1650x1750
W200WV	11.08 – 27.8	10.2 – 26.0	9.0 – 23.5	7.32 – 19.5	160	DN65	3750	3300x2200x2000
W270WV	13.6 – 34.5	12.8 – 33.0	11.2 – 28.0	9.4 – 23.5	200	DN80	4100	3300x2200x2000
W330WV	17.2 – 43.0	16.2 – 40.5	13.6 – 36.5	12.0 – 32.0	250	DN100	4750	3670x2070x2370

7 bar = 100 psig | 8 bar = 116 psig | 10 bar = 145 psig | 12.5 bar = 181 psig

Voltage: 415V 50Hz 3Ph etc. | Product appearances and speciﬁcations are subject to change without notice.

Model	Bar	Air Flow	Noise	Motor	Air Outlet	Weight	Dimensions
Model	Bar	m³/min	dB(A)	kW	Air Outlet	Kg	(L x W x H) mm
Belt Driven Scroll Air Compressors with Cabinet
B5S	9.5	0.38	58±2	3.7	½”	150	680x690x840
B7.5S	9.5	0.6	58±2	5.5	½”	160	680x690x840
B10S	9.5	0.76	60±2	7.5	¾”	400	1250x810x1180
B15S	9.5	1.2	60±2	11	¾”	440	1250x810x1180
B20S	9.5	1.52	60±2	15	¾”	700	1600x1250x1240
B30S	9.5	2.4	65±2	22	1″	820	1600x1250x1240
B37S	9.5	3.0	65±2	27.5	1½”	1000	1600x1250x1650
B45S	9.5	3.6	65±2	33	1½”	1200	1600x1250x1650
B52S	9.5	4.2	65±2	38.5	1½”	1400	2320x1450x1740
B60S	9.5	4.8	65±2	44	1½”	1520	2320x1450x1740
B67S	9.5	5.4	65±2	49.5	1½”	1650	2320x1450x1740

Model	Bar	Air Flow	Noise	Motor	Air Outlet	Weight	Dimensions
Model	Bar	m³/min	dB(A)	kW	Air Outlet	Kg	(L x W x H) mm
Belt Driven Scroll Air Compressors without Cabinet
B5Sx	9.5	0.38	60±2	3.7	½”	70	657x420x336
B7.5Sx	9.5	0.6	60±2	5.5	½”	98	850x500x380

Please check with us for other speciﬁcations.

Operation control mode: Pressure start and stop. | Type of motor: Three-phase asynchronous motors. | 9.5 bar = 137 psig.

Voltage: 415V 50Hz 3Ph etc. | Product appearances and speciﬁcations are subject to change without notice. 8

Auto Drain

One.ki® Zero Air Loss Condensate Drain, a motorised ball valve type used in draining compressor air tanks, dryers and filters. Auto drains are used to replace manual drains that are normally standard equipment on compressor tanks.

200AH 200A 500A 1500A

Model	Working Bar	Inlet	Outlet	Weight (Kg)	Compressor	Dryer	Filter
Model	Working Bar	Inlet	Outlet	Weight (Kg)	(m³/min) (Max)
200AH	0 – 45	½”	½”	1.5	30	60	300
200A	0 – 16	½”	½”	1.5	30	60	300
500A	0 – 16	¾”	½”	3.5	95	190	1000
1500A	0 – 16	¾”	½”	4.5	300	600	3000

Product appearances and speciﬁcations are subject to change without notice.

OneSolution

Service

all brands of Compressed Air Equipment by experienced service engineers.

One.ki® Air Compressor, Zero-Air Loss Auto Drain, Line Filter,Air Dryer, etc.

Sales, Rental & Repairs

for Compressor, Air Dryer, Line Filter, Gang Control,etc.

Evaluation of your current compressed air system.

Air Receiver Tank

Sales, Service and Testing.

Electrical Motor, Inverter, Switch, Breaker, Wire Rope & Chain Hoist.

Plant / Facility We provide product and services for your plant and facility needs.

Air Piping Installation New, Repair or Upgrade.
