Apa Itu Brew Kettle Direct-Fired?
Dalam industri minuman khususnya pembuatan bir, peralatan brew kettle memegang peranan sangat penting. Brew kettle direct-fired adalah sistem tangki pemanas yang menggunakan nyala api langsung dari burner untuk memanaskan wort hingga temperatur tertentu. Proses ini menentukan kualitas hasil fermentasi dan cita rasa bir.
PT Indira Mitra Boiler sebagai pabrikator brew kettle direct-fired menghadirkan solusi terbaik melalui penggunaan stainless steel SS316L dan burner berkualitas (seperti Baltur atau Riello). Dengan material food grade, desain higienis, serta sistem pemanas efisien, produk ini menjadi pilihan utama brewery modern maupun craft beer di Indonesia.
Brew Kettle Direct-Fired manufactured from premium SS316L stainless steel with a high-efficiency gas burner by PT Indira Mitra Boiler. Designed for breweries, beverage production, food processing, and industrial heating applications, providing uniform heat distribution, precise temperature control, and reliable long-term performance.
Brew Kettle Direct-Fired Made of SS316L with Burner – Fabricated by PT Indira Mitra Boiler
Material SS316L – Standar Food Grade untuk Industri Minuman
Mengapa brew kettle harus menggunakan SS316L?
Ketahanan korosi tinggi → SS316L sangat tahan terhadap karat, bahkan pada lingkungan dengan kelembaban tinggi.
Aman untuk kontak makanan/minuman → tidak menimbulkan reaksi kimia, tidak merusak rasa, dan sesuai standar food grade.
Mudah dibersihkan → permukaan halus mendukung sistem CIP (Clean in Place).
Durabilitas tinggi → tangki lebih awet meski digunakan dalam siklus produksi intensif.
Bahan SS316L juga menjadi standar internasional dalam industri brewery, dairy, hingga pharmaceutical.
Isi Video: Sistem Direct-Fired dengan Burner
Video ini menjelaskan prinsip kerja Sistem Direct-Fired dengan Burner, yaitu metode pemanasan di mana api dari burner diarahkan langsung ke bagian bawah tangki atau ruang pemanas tanpa menggunakan media perantara seperti steam, thermal oil, atau heat exchanger. Sistem ini banyak digunakan pada brew kettle, food processing, brewing, chemical mixing, dan berbagai proses industri yang membutuhkan pemanasan cepat dan efisiensi tinggi.
Video memperlihatkan bagaimana burner industri menghasilkan nyala api yang stabil untuk memanaskan dasar tangki secara langsung. Energi panas hasil pembakaran ditransfer ke dinding tangki, kemudian diteruskan ke cairan atau produk di dalamnya sehingga proses pemanasan berlangsung lebih cepat dibandingkan sistem pemanas tidak langsung.
Pembahasan Utama dalam Video
- Penjelasan konsep Direct-Fired Heating System.
- Cara kerja burner gas atau diesel sebagai sumber panas utama.
- Proses perpindahan panas langsung dari nyala api ke dasar tangki.
- Distribusi panas yang merata untuk menjaga kualitas produk.
- Pengaturan temperatur menggunakan sistem kontrol burner.
- Efisiensi pembakaran untuk menghemat konsumsi bahan bakar.
- Sistem keselamatan seperti flame detector, pressure switch, dan burner interlock.
- Dokumentasi proses fabrikasi dan instalasi sistem Direct-Fired oleh PT Indira Mitra Boiler.
Komponen yang Ditampilkan
Video juga menjelaskan komponen utama sistem, antara lain:
- Industrial Burner (Gas atau Diesel)
- Brew Kettle atau Process Tank
- Combustion Chamber
- Burner Control Panel
- Ignition Transformer
- Flame Detector
- Gas Train atau Oil Supply System
- Air Blower
- Exhaust Stack
- Temperature Controller
- Safety Interlock System
Keunggulan Sistem Direct-Fired
Dibandingkan sistem pemanas tidak langsung, Direct-Fired menawarkan beberapa keuntungan:
- Pemanasan lebih cepat (rapid heating).
- Efisiensi termal tinggi karena panas ditransfer langsung ke tangki.
- Konsumsi energi lebih rendah karena tidak ada kehilangan panas pada media perantara.
- Desain sistem lebih sederhana dan kompak.
- Biaya investasi dan perawatan relatif lebih rendah.
- Kontrol temperatur lebih responsif.
- Cocok untuk proses batch maupun produksi berkelanjutan.
Aplikasi Industri
Video menunjukkan bahwa sistem Direct-Fired banyak digunakan pada:
- Brewery dan Craft Beer
- Food Processing
- Coffee dan Tea Processing
- Syrup Production
- Herbal Extract
- Dairy Industry
- Chemical Processing
- Pharmaceutical Industry
- Cosmetic Manufacturing
- Liquid Mixing Process
Kesimpulan
Video ini menerangkan bagaimana Sistem Direct-Fired dengan Burner bekerja sebagai solusi pemanas industri yang mengandalkan pembakaran langsung untuk menghasilkan perpindahan panas yang cepat, efisien, dan stabil. Dengan kombinasi burner berkinerja tinggi, kontrol temperatur otomatis, dan sistem keselamatan yang lengkap, teknologi ini menjadi pilihan yang efektif untuk berbagai proses pemanasan di industri makanan, minuman, kimia, dan manufaktur, sekaligus membantu meningkatkan efisiensi energi serta kualitas hasil produksi.
Sistem Direct-Fired dengan Burner

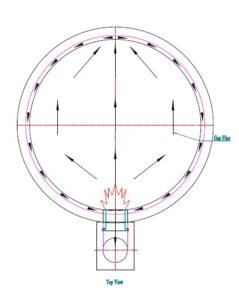

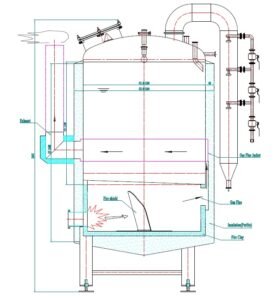

Pada sistem brew kettle direct-fired, api dari burner ditembakkan langsung ke bagian bawah tangki. PT Indira Mitra Boiler menggunakan burner berkualitas seperti Baltur (Italia) atau Riello yang terkenal efisien dan stabil.
Keunggulan sistem direct-fired:
Pemanasan cepat – api langsung kontak dengan dinding bawah tangki.
Efisiensi energi – konsumsi gas lebih hemat dengan burner modern.
Kontrol presisi – dilengkapi sensor suhu otomatis.
Kualitas hasil terjamin – wort tidak gosong karena adanya fire shield (refractory).
Komponen penting:

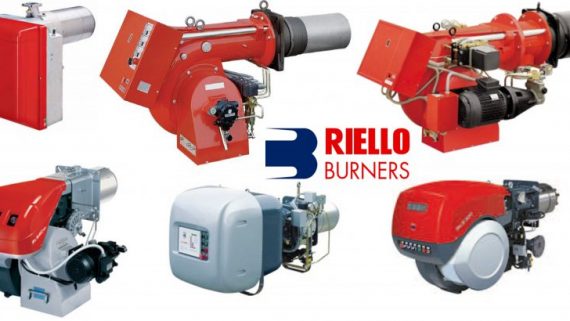

Burner Baltur / Riello → sumber api yang stabil.
Fire shield / refractory → pelindung dinding bawah agar panas menyebar merata.
Tangki SS316L → area pemanasan wort.
Insulasi luar → menahan panas agar efisiensi tetap tinggi.
Peran PT Indira Mitra Boiler sebagai Pabrikator
Sebagai pabrikator nasional, PT Indira Mitra Boiler memiliki keunggulan dalam memproduksi brew kettle direct-fired berbahan SS316L dengan burner.
Layanan Pabrikasi Brew Kettle Direct-Fired oleh PT Indira Mitra Boiler
PT Indira Mitra Boiler menyediakan layanan pabrikasi Brew Kettle Direct-Fired yang dirancang khusus untuk memenuhi kebutuhan industri makanan, minuman, brewery, farmasi, dan proses kimia. Seluruh unit diproduksi menggunakan material SS316L food grade dengan proses fabrikasi presisi serta pengawasan kualitas yang ketat. Setiap brew kettle dapat disesuaikan berdasarkan kapasitas produksi, jenis produk, sumber bahan bakar, hingga kebutuhan temperatur proses sehingga menghasilkan sistem pemanas yang efisien, aman, dan tahan lama.
1. Desain & Rekayasa Brew Kettle Sesuai Kapasitas Produksi
Tim engineering PT Indira Mitra Boiler melakukan perhitungan kapasitas, kebutuhan panas (heat load), dimensi tangki, ketebalan material, serta kapasitas burner berdasarkan proses produksi pelanggan. Dengan pendekatan ini, setiap brew kettle mampu memberikan distribusi panas yang merata, waktu pemanasan lebih cepat, dan konsumsi energi yang lebih efisien.
2. Pabrikasi Tangki SS316L Standar Food Grade
Seluruh tangki diproduksi menggunakan Stainless Steel SS316L yang memiliki ketahanan tinggi terhadap korosi, temperatur tinggi, dan bahan kimia pembersih (CIP). Material ini sangat ideal untuk aplikasi industri makanan dan minuman karena memiliki permukaan higienis, mudah dibersihkan, serta memenuhi standar sanitasi untuk proses produksi.
3. Instalasi Industrial Burner Berkualitas
PT Indira Mitra Boiler menyediakan instalasi industrial burner berbahan bakar gas, solar, maupun dual fuel sesuai kebutuhan pelanggan. Sistem burner dapat menggunakan merek Baltur, Riello, atau merek lain yang memiliki spesifikasi setara. Seluruh burner dipilih berdasarkan kebutuhan kapasitas panas sehingga menghasilkan pembakaran yang efisien, stabil, dan ramah lingkungan.
4. Pemasangan Refractory dan Fire Shield
Untuk meningkatkan efisiensi pemanasan serta melindungi struktur tangki dari paparan panas langsung, setiap sistem Direct-Fired dilengkapi dengan refractory lining atau fire shield berkualitas tinggi. Komponen ini membantu menjaga kestabilan temperatur, mengurangi kehilangan panas, serta memperpanjang umur pakai peralatan.
5. Quality Control dan Hydrotest Sebelum Pengiriman
Sebelum dikirim ke lokasi pelanggan, setiap unit menjalani serangkaian Quality Control (QC) yang meliputi inspeksi dimensi, pemeriksaan kualitas pengelasan, finishing permukaan, hingga hydrostatic test (Hydrotest) untuk memastikan tidak terdapat kebocoran pada tangki maupun sistem perpipaan. Seluruh pengujian dilakukan sesuai prosedur engineering untuk menjamin keamanan dan keandalan produk.
6. Instalasi dan Commissioning di Lokasi Pelanggan
PT Indira Mitra Boiler juga menyediakan layanan instalasi, start-up, test running, combustion tuning, serta commissioning di lokasi pelanggan. Tim teknisi akan melakukan penyetelan burner, pengujian sistem kontrol, kalibrasi temperatur, serta memastikan seluruh sistem Direct-Fired Brew Kettle beroperasi sesuai spesifikasi desain. Setelah commissioning selesai, operator pelanggan juga diberikan panduan pengoperasian dan perawatan agar sistem dapat bekerja secara optimal dalam jangka panjang.
Mengapa Memilih PT Indira Mitra Boiler?
Dengan pengalaman dalam desain, fabrikasi, instalasi, dan commissioning sistem pemanas industri, PT Indira Mitra Boiler mampu menghadirkan solusi Brew Kettle Direct-Fired yang efisien, aman, hemat energi, dan disesuaikan dengan kebutuhan setiap pelanggan. Kami melayani berbagai sektor industri, mulai dari brewery, food & beverage, dairy, coffee processing, herbal extraction, pharmaceutical, hingga chemical processing, dengan dukungan layanan purna jual, spare part, dan tim teknisi berpengalaman di seluruh Indonesia.
Applications of Direct-Fired Brew Kettles
Direct-Fired Brew Kettles are widely used across the food, beverage, and process industries where precise temperature control, rapid heating, and consistent product quality are essential. Manufactured from food-grade SS316L stainless steel, these kettles are suitable for both small-batch production and large-scale industrial processing.
Industrial Breweries
Large-scale breweries rely on direct-fired brew kettles for efficient wort boiling during beer production. The high-efficiency gas burner provides rapid heating and stable boiling temperatures, helping to improve production capacity while reducing fuel consumption.
Typical Applications:
- Commercial Beer Production
- Lager Brewing
- Ale Brewing
- Industrial Brewing Facilities
- High-Volume Brewing Operations
Craft Breweries
Craft breweries require precise temperature control to produce premium beers with unique flavors and consistent quality. Direct-fired brew kettles allow brewers to adjust heating quickly while maintaining excellent process control.
Benefits for Craft Brewing:
- Small-Batch Brewing
- Flexible Recipe Development
- Faster Heating Response
- Consistent Wort Boiling
- Lower Operating Costs
Fermented Beverage Production
Direct-fired brew kettles are also suitable for producing a variety of fermented beverages that require controlled heating during preparation.
Applications include:
- Cider Production
- Kombucha Manufacturing
- Herbal Fermented Beverages
- Rice Wine Production
- Traditional Fermented Drinks
The SS316L construction provides excellent corrosion resistance against acidic ingredients commonly found in fermented products.
Liquid Food Processing
Food manufacturers use direct-fired kettles to heat, cook, mix, and pasteurize liquid food products while maintaining consistent temperatures throughout the production process.
Suitable products include:
- Milk Processing
- Fruit Juice Production
- Liquid Seasonings
- Syrup Manufacturing
- Sauces and Condiments
- Chocolate Processing
- Liquid Sugar
- Honey Processing
- Cooking Oil Heating
- Beverage Concentrates
Dairy Industry
The hygienic design of SS316L stainless steel makes these kettles ideal for dairy processing.
Typical applications include:
- Milk Heating
- Cream Processing
- Cheese Production
- Yogurt Preparation
- Pasteurization Processes
Pharmaceutical & Herbal Industry
Direct-fired brew kettles are commonly used for heating herbal extracts and pharmaceutical ingredients under controlled temperatures.
Applications include:
- Herbal Extraction
- Botanical Processing
- Pharmaceutical Liquid Mixing
- Nutraceutical Production
- Essential Oil Preparation
Chemical & Process Industry
Beyond food production, direct-fired kettles can also be used for industrial process heating where precise temperature control is required.
Applications include:
- Chemical Mixing
- Resin Preparation
- Adhesive Manufacturing
- Specialty Chemical Processing
Why Industries Choose Direct-Fired Brew Kettles
- Rapid Heating Performance
- High Thermal Efficiency
- Precise Temperature Control
- Food-Grade SS316L Construction
- Excellent Corrosion Resistance
- Lower Fuel Consumption
- Hygienic Design
- Easy Cleaning (CIP Compatible)
- Custom Capacities Available
- Long Service Life
- Reliable Industrial Performance
PT Indira Mitra Boiler designs and fabricates Direct-Fired Brew Kettles in various capacities to meet the requirements of breweries, food and beverage manufacturers, dairy processors, pharmaceutical companies, and other industrial process applications, delivering reliable performance and long-term operational efficiency.
Keunggulan Brew Kettle PT Indira Mitra Boiler
Material Premium SS316L Food Grade
Menjamin higienitas dan daya tahan.Burner Efisien
Menggunakan brand internasional (Baltur/Riello).Kustomisasi Kapasitas
Mulai dari skala kecil (200 liter) hingga besar (10.000 liter).Desain Higienis
Mendukung sistem CIP, mudah dicuci, dan sesuai standar industri makanan.Harga Kompetitif
Produk lokal dengan kualitas internasional.
Proses Fabrikasi di PT Indira Mitra Boiler
Perancangan (Design Engineering) – menghitung kapasitas, material, dan kebutuhan proses.
Pemotongan & Pengelasan SS316L – dengan teknik TIG/MIG sesuai standar food grade.
Assembly Burner & Refractory – memastikan sistem pemanas efisien.
Quality Control – termasuk NDT (non-destructive test) jika diperlukan.
Hydrotest & Commissioning – uji kebocoran dan performa.
Maintenance & Perbaikan
PT Indira Mitra Boiler juga menyediakan layanan maintenance brew kettle direct-fired, antara lain:
Penggantian refractory/fire shield jika pecah.
Service burner Baltur/Riello.
Kalibrasi kontrol suhu.
Pembersihan tangki SS316L.
Brew Kettle Direct-Fired Made of SS316L with Burner – Fabricated by PT Indira Mitra Boiler
Industrial Direct-Fired Brew Kettle for Efficient Brewing and Food Processing
A Direct-Fired Brew Kettle manufactured from SS316L stainless steel is one of the most efficient heating solutions for breweries, beverage manufacturers, distilleries, and food processing industries. Unlike steam-jacketed kettles, a direct-fired system transfers heat directly from a high-efficiency gas burner to the kettle bottom, resulting in faster heating, lower energy consumption, and simplified installation.
At PT Indira Mitra Boiler, every Brew Kettle is custom-engineered to meet the customer’s production capacity, heating requirements, and process specifications. Manufactured using premium SS316L food-grade stainless steel, our kettles provide superior corrosion resistance, hygienic operation, and long-term durability.
Why Choose SS316L Stainless Steel?
SS316L is widely recognized as one of the best materials for brewing and food processing equipment due to its excellent corrosion resistance and hygienic properties.
Benefits of SS316L
- Excellent corrosion resistance
- Food-grade material
- Resistant to acidic and alkaline products
- Easy to clean (CIP compatible)
- High-temperature resistance
- Long service life
- Smooth sanitary surface finish
- Ideal for breweries and beverage production
Direct-Fired Heating Technology
Unlike steam-jacket systems, a direct-fired kettle uses a high-efficiency industrial gas burner positioned beneath the vessel.
Advantages
- Faster heating response
- High thermal efficiency
- Lower fuel consumption
- Lower installation cost
- Simplified piping system
- Easy maintenance
- Reduced operating expenses
Industrial Applications
Our Direct-Fired Brew Kettles are suitable for:
- Craft Breweries
- Beer Production
- Coffee Processing
- Tea Manufacturing
- Dairy Industry
- Syrup Production
- Sauce Manufacturing
- Sugar Processing
- Herbal Beverage Production
- Distilleries
- Food Processing Plants
Study Case 1 – Craft Brewery
Customer Requirement
A craft brewery planned to increase production from 500 liters per batch to 1,000 liters per batch while reducing brewing time and fuel consumption.
Existing Challenges
- Slow heating process
- High LPG consumption
- Uneven boiling
- Long production cycle
Implemented Solution
PT Indira Mitra Boiler designed and fabricated a 1,000-liter Direct-Fired Brew Kettle using SS316L stainless steel equipped with:
- High-efficiency gas burner
- Digital temperature controller
- Automatic ignition system
- High-density insulation
- Food-grade sanitary fittings
Results
- Faster heating time
- Reduced fuel consumption
- More consistent wort boiling
- Increased production capacity
- Improved product quality
- Lower operating costs
Study Case 2 – Syrup Manufacturing
Customer Requirement
A beverage manufacturer required a hygienic heating system for sugar syrup production.
Solution
A custom-built SS316L Direct-Fired Brew Kettle with automatic burner modulation was installed.
Benefits Achieved
- Stable processing temperature
- Uniform heat distribution
- Improved product consistency
- Lower maintenance costs
- Easy cleaning using CIP
Comparative Study
Direct-Fired vs Steam Jacket Brew Kettle
Feature | Direct-Fired | Steam Jacket |
|---|---|---|
| Initial Investment | Lower | Higher |
| Heating Speed | Very Fast | Moderate |
| Fuel Efficiency | High | High (system dependent) |
| Installation Complexity | Simple | More Complex |
| Boiler Required | No | Yes |
| Steam System Required | No | Yes |
| Maintenance | Low | Moderate |
| Operating Cost | Lower | Higher |
| Temperature Uniformity | Good | Excellent |
| Best Application | Small to Medium Production | Medium to Large Production |
SS304 vs SS316L Brew Kettle
Property | SS304 | SS316L |
|---|---|---|
| Corrosion Resistance | Good | Excellent |
| Chloride Resistance | Moderate | High |
| Acid Resistance | Moderate | Excellent |
| Hygienic Performance | Good | Excellent |
| Food & Beverage Industry | Excellent | Premium Choice |
| Service Life | Long | Very Long |
| Material Cost | Lower | Higher |
For breweries, beverage processing, dairy, pharmaceutical, and food manufacturing, SS316L is generally preferred where enhanced corrosion resistance and stringent hygiene requirements are important.
Why PT Indira Mitra Boiler?
PT Indira Mitra Boiler specializes in the design and fabrication of custom industrial process equipment.
Our Services
- Custom Brew Kettle Design
- Process Engineering
- SS304 & SS316L Fabrication
- Industrial Burner Integration
- PLC Automation
- Temperature Control Systems
- Factory Acceptance Testing (FAT)
- Installation & Commissioning
- Maintenance Services
- Spare Parts Support
Key Advantages
- Premium SS316L Construction
- Food-Grade Sanitary Design
- High-Efficiency Gas Burner
- Fast Heating Performance
- Low Fuel Consumption
- Automatic Temperature Control
- Custom Capacity Available
- Easy Cleaning (CIP Compatible)
- Heavy-Duty Industrial Construction
- Long Service Life
- Professional Engineering Support
- Manufactured by PT Indira Mitra Boiler
Conclusion
A Direct-Fired Brew Kettle fabricated from SS316L stainless steel offers an efficient and reliable solution for breweries, beverage producers, and food processing facilities seeking rapid heating, simplified installation, and reduced operating costs. By combining food-grade materials, high-efficiency burner technology, and custom engineering, PT Indira Mitra Boiler delivers equipment designed for consistent product quality, operational reliability, and long-term industrial performance.
Mengapa Memilih PT Indira Mitra Boiler?
Pengalaman lebih dari 10 tahun dalam industri boiler & tangki.
Engineer berpengalaman dan tenaga kerja bersertifikat.
Produk custom sesuai kebutuhan brewery.
After sales service terbaik.
Harga bersaing dengan kualitas internasional.
Hubungi Kami
Untuk kebutuhan brew kettle direct-fired berbahan SS316L dengan burner, hubungi:
Hubungi Kami
PT Indira Mitra Boiler
Ratman (Sales Engineer)
☎️✔081388666204
Email: info@indira.co.id
Email: idmratman@gmail.com
