Hot Water Boiler Industri
Jual Hot water Boiler Untuk Industri

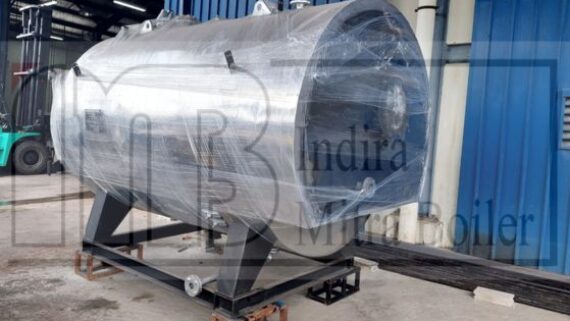

Hot water Boiler industri High temp water Boiler adalah salah satu produk kettle yang memiliki sistem kerja menggunakan media water (air) sebagai penghantar panasnya. Dengan desain dan perhitungan sedemikian rupa, Hot water evaporator kami mampu bekerja untuk panas temperatur 40°C hingga maksimal 120°C tanpa terjadi steam atau uap. High temp water heater bekerja hanya menggunakan tekanan dari pompa sirkulasi dengan pressure pompa sirkulasi kurang dari 4 barg membuat boiling water kettle ini sangat aman untuk dioperasikan. Umur kerja dari high temp water evaporator yang dipergunakan umumnya lebih dari 10 s/d 15 tahun dan tidak diperlukan penambahan apapun selama tidak ada kebocoran pada pipa-pipa atau peralatan pemanas, dan selama itu tidak diperlukan pembersihan karena bagian dalam loop tersirkulasi oleh air panas.
Kami telah merancang Seri Boiler Air Panas high temp water Winskettel kami secara khusus untuk memberikan pemanasan gedung dan industri pengolahan industri dengan Boiler Kualitas Super dengan Keunggulan tiada banding dalam Keselamatan, Layanan Umur Panjang, dan Operasi Ekonomis. Kesederhanaan Sistem tanpa kipas atau katup FGR, memungkinkan administrator evaporator ordinary untuk menyesuaikan dan memperbaiki Sistem. Keterulangan pengulangan tidak tertandingi.
Sistem Hot water Boiler winskettel menawarkan banyak keuntungan dari Emisi NOx Rendah dan CO, distribusi panas yang seragam di seluruh permukaan pemanas dan peningkatan efisiensi. Heater menggabungkan bed burner dari Heavy Duty Metal Fiber Burners (MFB). Melalui bermacam-macam gas premix gas/udara, burner dapat dihubungkan ke blender blower yang sepenuhnya modulasi yang menawarkan kontrol pembakaran yang presisi melalui berbagai modulasi. Sistem Burner tersedia pada evaporator baru atau untuk perbaikan Parker. Sistem Parker Boiler telah terbukti di lapangan pada Parker dan jenis kettle lainnya sebagai alternatif yang efisien, tahan lama, Rendah NOx, efisien.
Keutamaan Hot Water Boiler Winskettel
- Sistem Pembakar Atmosfer, sistem kontrol, dan seluruh evaporator dilengkapi untuk kemudahan penggunaan dan pengoperasian oleh personel biasa.
- Tersedia dengan Sistem Pemosisian Paralel Linkageless.
- Pintu kabinet inspeksi dapat dengan mudah dilepas dalam hitungan menit, membuat evaporator inside, drum, tabung, dan pembakar mudah diakses
- INSPEKSI INTERNAL YANG MUDAH Baik header atas dan bawah dapat dengan mudah diperiksa secara inside. Evaporator Air Panas Parker dapat dibersihkan secara inward dengan cepat, aman, dan tidak mahal dengan bahan kimia.
- KONTROL BURNER Kontrol burner otomatis memberikan perlindungan programming interface 100% dengan reset manual, katup gas listrik ganda dan pengatur tekanan gas.
- DESAIN TABUNG Konstruksi Bent Tube All-Welded adalah yang withering fleksibel dan tahan lama di pasaran.
Sepesifikasi Hot water Industri 2 Jt Kcal/H (2000 Mcal/h)
| No. | Description | Unit | Value |
| 1. | Type | Shell & tube type, Three pass, Smoke tube, Integral Furnace | |
| 2. | Heat output | kcal/ hr | 17,22,000 |
| kW | 2000 | ||
| 3. | Medium | – | Hot water |
| 4. | Hot water outlet temperature | Deg C | 95 |
| 5. | Hot water inlet temperature | Deg C | 65 |
| 6. | Hot water flow rate | m3/hr | 60 |
| 7. | Hot water pressure available for users | mLC | 20 |
| 8. | Thermal efficiency on NCV | % | 92 ± 2 |
| 9. | Fuel | Diesel | |
| 10. | NCV* | kcal/kg | 10500 |
| 11. | Fuel consumption at full load | kg/ hr | 179 |
| 12. | Quantity | Nos. | 1 |
| 13. | Recommended water quality | Soft water, pH = 8.5 | |
| 14. | Recommended Header piping size for above Hot water flow rate | DN 100, IS 1239, Class B | |
| 15. | Power Supply | 415 V, 50 Hz, 3 Ph., AC, 4 Wire System | |
| 16. | Control Supply | 230 V AC | |
| MATERIAL OF CONSTRUCTION | |||
| 1. | Furnace Shell, Tube plates | SA 516 Gr.70 | |
| 2. | Tubes | BS 3059 ERW | |
| 3. | Outer shell | IS2062 | |
| 4. | Other peripheral and supports | IS2062 |
2.2 Circulation Pump And Motor Assemblies Centrifugal pump with motor suitable for the operating condition are provided for hot water circulation through the system
Type Centrifugal,Horizontal Capacity 65m³/hr Head 35mLC ShaftSeal (Mechanicalseal) Motor 11 kW, 2 Poles, 2900RPM Quantity 2 Set(1Working+1Standby)
2.3. Burner HeatOutput 1,915,000kcal/hr. Fuel HSD Controlaction Step lessmodulation ModeofOperation FullyAutomatic FlameSensor U V TypeDetector
2.4. Electricals, System Controls AndSafeties Hot water supplytemperaturehigh Modulating Hot water returntemperaturelow Modulating Hot water supply temperatureveryhigh Alarm with burner trip Water flow acrossheaterlow Alarm with burner trip Expansion cum make up tankLevelHigh Alarm with burner trip Expansion cum make up tank levelverylow Alarm with burner trip Expansion cum make up tanklevellow Make up pump ON/OFF
2.5. Indications On ControlPanel PowerOn/ControlOn Indication BurnerOn Indication Circulation Pump ON/OFF/Trip Indication Hot water returntemperaturehigh Indication Low level inExpansiontank Indication Hot water flow throughheaterlow Indication Hot water outlet temperatureveryhigh Indication High Level in Expansion cum make up tank Indication Hot wateroutlettemperature DigitalIndication Hot waterreturntemperature DigitalIndication Hot watersupplypressure PressureGauge Hot waterreturnpressure PressureGauge Flue gasoutlettemperature Temperature Gauge
Relay Based ControlPanel :
Type Relay based Control Panel, Free standing, Frontopen
Protectionclass IP52
Cableentry Bottom
MOC As per manufacturer’sstandard
ControlVoltage 230 VDC
No of powersource Single
Quantity 1Set
PanelLocation Indoor, Within Boiler Room and 10 meters range from Hot Water Generator
Expansion Cum Make-Up Water Tank :
The expansion cum make-up water tank of capacity 1000 liters will be provided to compensate any leakages from hot water generator system and expansion of water while heating. This tank is designed by considering 2000 liter utility side holdup and 15000 liter total system holdup (customer to confirm). Tank will be no pressurized and open to atmosphere. This tank to be located at the top most location of thesystem.
Type Vertical,rectangular
Systemholdup 15000Liters
Tankcapacity 1000Liters
Operatingtemperature 90 DegC
Designtemperature 95 DegC
Accessories LevelIndicator
Materialofconstruction IS2062
Chimney (ExhaustPipe) :
Exhaust pipe of total 18m length will be supplied in loose supply of 6m length to carry out flue gases to atmosphere. Pipe MOC shall be IS 3589 and it will be painted withHRAL.
Design, Manufacturing and Supplyof Hot Water Generator System consisting of:
| SL | DESCRIPTION | QTY |
| 1. | Hot Water Generator (Capacity 2000 kW) | 1 No. |
| 2. | Burner assembly | 1 No. |
| 3. | Unit Mounted mounting and accessories set comprising of | 1 Set |
| 3.1. | Temperature Indicating Switch (TIS) at inlet of HWG | 1 No. |
| 3.2. | Temperature Indicating Controller (TIC) at outlet of HWG | 1 No. |
| 3.3. | Differential Pressure Switch with alarm across HWG | 1 No. |
| 3.4. | Temperature Gauge on Flue Gas outlet duct | 1 No. |
| 3.5. | Temperature Sensors (RTD) | 2 Nos. |
| 3.6. | Pressure Gauge at outlet | 1 No. |
| 3.7. | Pressure Relief Safety Valves | 1 No. |
| 3.8. | Drain Valve at drain connection of HWG | 1 No. |
| 3.9. | Vent Valve at Vent Connection of HWG | 1 No. |
| 4. | Circulation Pump Skid assembly (1W+1SB) | 1 Set |
| 4.1. | Circulation Pump (Suitable for 100°C, 65 m3/hr, 30 mLC) | 2 No. |
| 4.2. | Suitable Motor | 2 No. |
| 4.3. | Pressure Gauges at inlet and outlet of Circulation Pump | 2 Nos. |
| 5. | Valves for System | 1 Set |
| 5.1. | Isolation valves of HWG | 2 Nos. |
| 5.2. | Common Isolation valves at Discharge of the circulation pump | 1 No. |
| 5.3. | Isolation valves at Discharge of the circulation pump | 2 No. |
| 5.4. | Non Return Valves at outlet of circulation pump | 2 No. |
| 5.5. | Rapid Filling Valve | 1 No. |
| 6. | Relay based Panel for Hot Water Generator System | 1 Set |
| 7. | Expansion cum Make-up water tank | 1 No. |
| 8. | Exhaust pipe 18m height (loose supply) | 1 No. |
Demikian artikel pembahasan mengeani hot water boiler untuk industri, jika ada info kebutuhan atau pertanyaan yang kurang di fahami tidak di temukan di artikel ini bisa hubungi marketing. Zaenal Arifin Wa. 081385776935
